How to Replace a CPU Cooler Without Making Common Mistakes

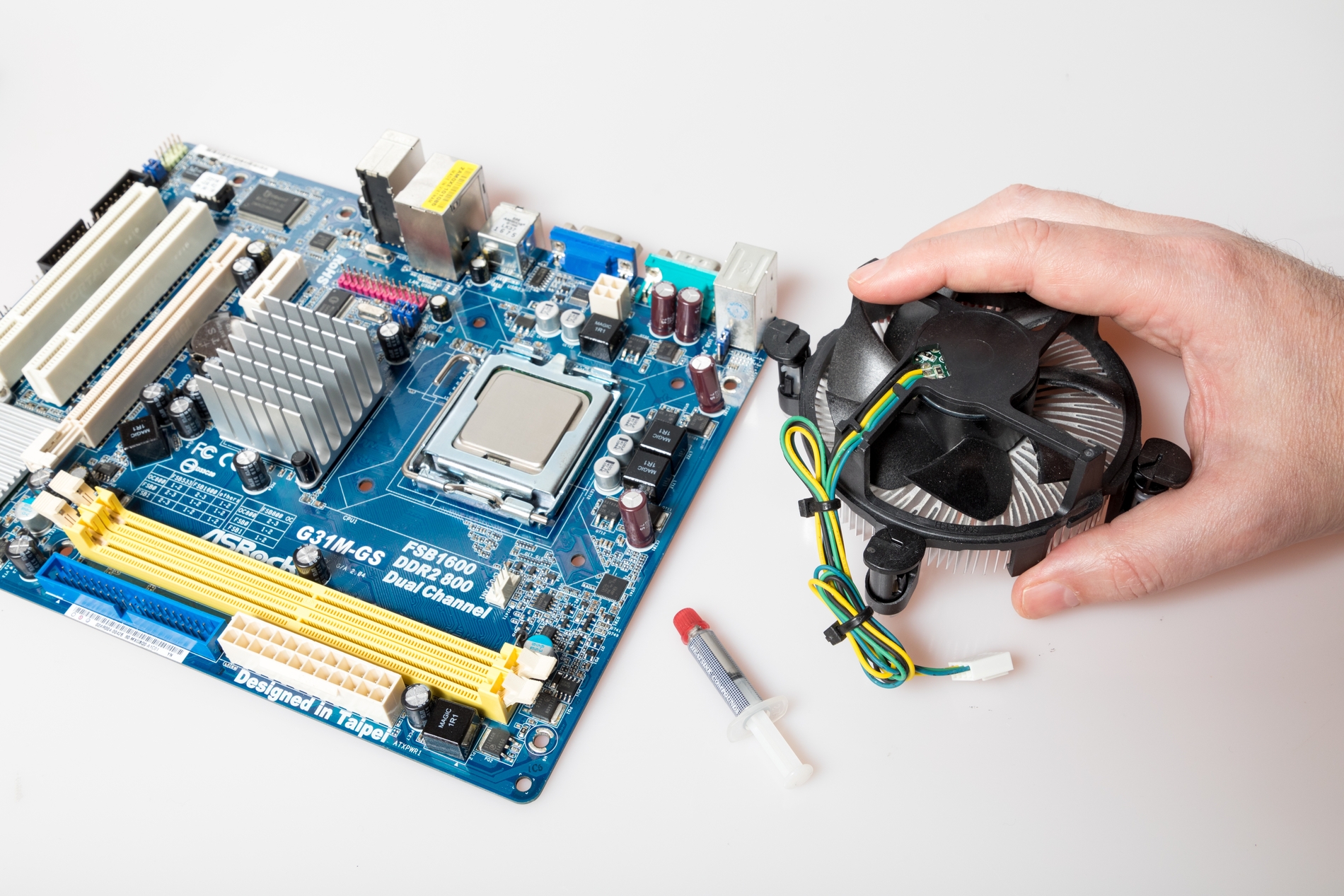

Credit: Shutterstock

One thin plastic film left on a cooler’s base can ruin a PC build that looks perfectly assembled.

Replacing a CPU cooler is not complicated, but mistakes can be irreversible. This guide walks you through every step in order, with the common pitfalls called out exactly where they happen.

Check Compatibility Before You Touch Anything

The most avoidable mistake is buying a cooler that does not support your CPU’s socket type. Check both your CPU’s socket and your cooler’s supported socket list before doing anything else.

Current common socket types are AMD AM4, AMD AM5, Intel LGA1700 (12th, 13th, and 14th Gen Core), and Intel LGA1851 (Core Ultra 200 series). You can find this information printed on your motherboard box and listed on the cooler’s product page.

Also, confirm the cooler size fits the case. Check the maximum CPU cooler height your case supports (listed in the case specs) against the cooler’s height listed on the box or product page. Tall-tower coolers often clash with side panels in compact mid-tower cases.

Before You Start

Make sure you have:

• Your new CPU cooler
• The correct mounting kit for your CPU socket
• Thermal paste, unless the cooler already has it pre-applied
• A Phillips-head screwdriver
• 90% or higher isopropyl alcohol
• A lint-free cloth or coffee filter
• Your cooler’s installation manual

Note: Many aftermarket coolers include a syringe of thermal paste in the box. If your cooler’s base already has a gray pre-applied pad or compound, skip the thermal paste.

Step 1: Shut Down and Prepare the PC

1. Shut your PC down completely. Do not use Sleep or Hibernate mode.
2. Switch off the power supply.
3. Unplug the power cable.
4. Press the power button once to discharge any remaining electricity.
5. Lay the computer on its side.

If you are replacing an existing cooler, use the PC for a few minutes first, as this warms the thermal paste and makes it easier to remove.

Step 2: Discharge Static Electricity

Before reaching inside the case, touch the bare metal frame of your PC case with your hand. This discharges any static electricity from your body that could damage the motherboard or CPU. If you own an anti-static wrist strap, clip it to the metal case frame and wear it for the entire installation. This is the safest option.

Step 3: Remove the Old CPU Cooler

Locate the CPU cooler. It sits directly on top of the CPU and has at least one fan attached. Unplug the fan cable from the motherboard header labeled CPU_FAN. Pull the connector straight up to remove it. Do not twist or yank it sideways.

Now, loosen the mounting screws a few turns each, using a crisscross pattern rather than removing one screw completely before the others. Set the screws aside safely.

Or unclip its retention clips if the current cooler uses mounts.

Once loose, gently twist the cooler left and right before lifting it away. Do not pull straight up with force, as old thermal paste can act like glue and may pull the CPU out of the socket.

Step 4: Clean the Old Thermal Paste

The top surface of your CPU will have old, gray, or silver thermal paste. You must remove all of it before installing the new cooler.

Dampen a lint-free cloth or a paper coffee filter with isopropyl alcohol. Wipe the CPU surface in one direction with light pressure. Repeat with a dry section of cloth until the surface looks clean and shiny. Wipe the base of your new cooler the same way, even if it looks spotless.

Let both surfaces air-dry for 2 minutes before continuing.

Warning: Do not let alcohol run toward the CPU socket pins around the edges of the CPU.

Step 5: Apply Thermal Paste

Skip this step entirely if your new cooler already has thermal paste or a gray compound pad applied to its base.

Place a single dot of thermal paste in the center of the CPU’s heat spreader, the flat, polished metal surface on top of the CPU.

The dot should be approximately the size of a small pea. Do not spread it. The pressure from mounting the cooler will automatically spread it evenly across the surface.

Using too much paste does not improve cooling. It can reduce cooling performance and create a mess around the CPU socket.

Step 6: Install the Mounting Hardware

Every CPU cooler uses its own mounting system, so follow the installation manual.

Install the required mounting hardware in this order:

• Backplate, if your cooler requires one
• Standoffs or spacers
• Mounting brackets

If your cooler uses a backplate, position it behind the motherboard and align it with the holes around the CPU socket. Then install the standoffs or screws from the front of the motherboard. Most modern PC cases have a cutout behind the CPU socket, allowing you to install the backplate without removing the motherboard.

Step 7: Mount the CPU Cooler

Look at the base of the new cooler where it contacts the CPU. Some coolers ship with a thin, nearly transparent plastic protective film covering the copper or nickel base. Remove it completely before mounting.

Next, lower the cooler straight down onto the CPU. Align the cooler’s mounting holes with the backplate standoffs or the motherboard mounting holes, depending on your cooler’s system.

Do not slide the cooler sideways once its base touches the thermal paste.

Hand-tighten the mounting screws in an X pattern. Apply final tightening focus in the same diagonal order. Stop when you feel firm resistance. Overtightening warps the motherboard PCB or cracks the socket.

Step 8: Connect the Fan

Plug the cooler’s fan cable into the motherboard header labeled CPU_FAN, just as you did when you detached it in Step 3. Do not connect the CPU fan cable to a case fan header labeled “SYS_FAN” or “CHA_FAN.”

Without the CPU_FAN connection, many motherboards display a CPU fan error or refuse to boot. Also, make sure the fan is facing the correct direction so it moves air through the heatsink toward the rear of the case.

Step 9: Double-Check Everything

Before closing the case, confirm that:

• All screws are secure.
• The fan cable is connected to CPU_FAN.
• The fan blades spin freely.
• No cables touch the fan.
• The protective plastic film has been removed from the bottom of the cooler.

Step 10: Test the Installation

Close the case, reconnect all cables, and turn on the PC.

Enter the BIOS or UEFI setup by pressing the Delete or F2 key during startup. Check the CPU Temperature reading, usually found under Hardware Monitor, PC Health Status, or a similar menu.

At idle in the BIOS, most CPUs should be between 30°C and 50°C. If the temperature is already above 80°C, shut down the PC and check that the cooler is mounted correctly, that the protective plastic film has been removed, and that thermal paste has been applied properly.

After booting into Windows, monitor CPU temperatures with a trusted tool such as HWiNFO64 or HWMonitor. You can also run a short CPU stress test to confirm the cooler is working properly. During heavy workloads, most consumer CPUs should stay below 90°C. If temperatures quickly rise into the high 90°C range, turn off the PC and recheck the cooler installation.

Final Thoughts

Installing a CPU cooler is mostly about patience rather than technical skill. Here is a short recap:

1. Confirm that your cooler matches your CPU socket
2. Clean away the old thermal paste completely
3. Apply only a small amount of fresh paste to the new cooler
4. Tighten the cooler evenly
5. And connect the fan to the CPU_FAN header

Following these steps carefully will keep your processor cool, keep your system stable, and ensure your new cooler performs exactly as intended.
